Heidelberg SM 52
(All sizes in mm)
| Inkers |
Colour |
Prod
Code |
Set Qty |
Roller
Dia |
Face Length |
Total Length |
| Form Roller |
Red |
HE353 |
1 |
54 |
538 |
564 |
| Form Roller |
Blue |
HE352 |
1 |
61 |
538 |
564 |
| Form Roller |
White |
HE351 |
1 |
64.5 |
538 |
564 |
| Form Roller |
Yellow |
HE354 |
1 |
68 |
538 |
564 |
| Ink Transfer Roller |
Green |
HE355 |
4 |
55 |
532 |
608 |
| Rider Roller |
Black |
HE356 |
1 |
50 |
532 |
608 |
| Ink Ductor |
Violet |
HE357 |
1 |
48 |
520 |
608 |
| Total Set Quantity |
|
|
10 |
|
|
|
| Alcolor dampening system |
|
|
|
|
|
|
| Alcolor Water Form |
|
HE358 |
1 |
68 |
533 |
559 |
| Alcolor Pan Roller |
|
HE359 |
1 |
74.1 |
532 |
586 |
|
 |

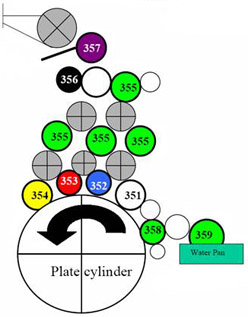

Roller
Configuration Diagram |
 |
 |
Alcolor system
A roller fitting service is now available by a skilled technician, with settings adjusted to manufacturers recommendations.
|
|
 |
|
|
|
|
